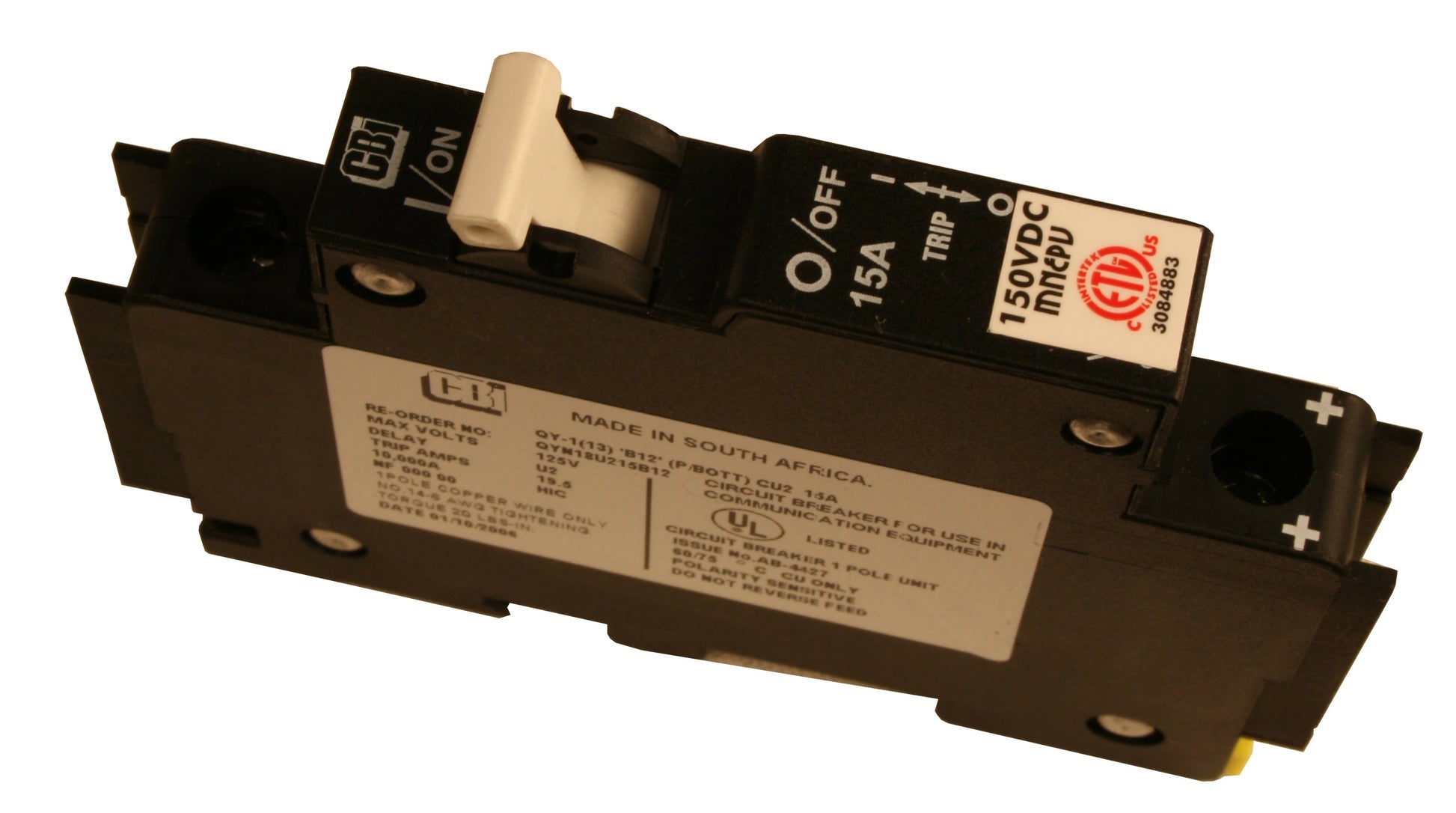

Midnite solar breaker MNEPV9

150VDC din rail mount breaker (13mm wide).

MidNite's breakers are rated to break the full rated load at the rated voltage repeatedly, with NO DAMAGE. Always use a properly sized breaker for disconnecting.

• Environmental Rating - Type 1 (Indoor)


• DC Voltage Rating - 150VDC


• Wire Size Range - 14 to 6 AWG


• Width - .51 in (13mm)


• Number of poles - 1


• 10,000 AIC

All MidNite circuit breakers can be used at 100% rated current when mounted in a MidNite enclosure. Breaker Torque Value: 20 In-Lbs (2.3NM)
