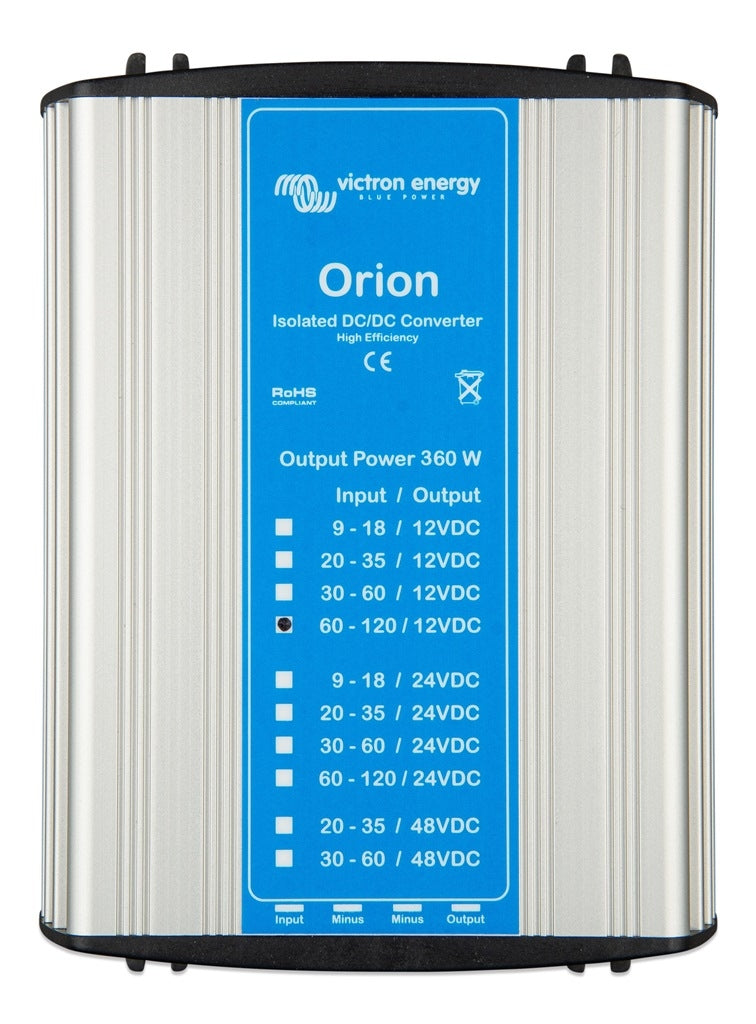

Victron Energy Orion 110/12-30A (360W) Isolated DC-DC converter

Orion 110/12-30A (360W) Isolated DC-DC converter

• Wide power supply range : from 60V to 140V


• Stable output voltage : 2%


• Short-circuit protection


• Converter overheat protection


• Overvoltage and reverse polarity protection

The Orion 110V DC isolated converter has a wide supply voltage range from 60V to 140V. It also has the capacity to provide a stable output voltage (with a variation of 2%).

This model is equipped with output protection against short circuit and overvoltage. It also has a safety device in case of a bad connection (reverse polarization).

When the system temperature rises, the converter will automatically reduce its output current. Its operating temperature range is from -20°C to 40°C beyond this value, the converter will reduce the current linearly up to 0A at 70°C.
