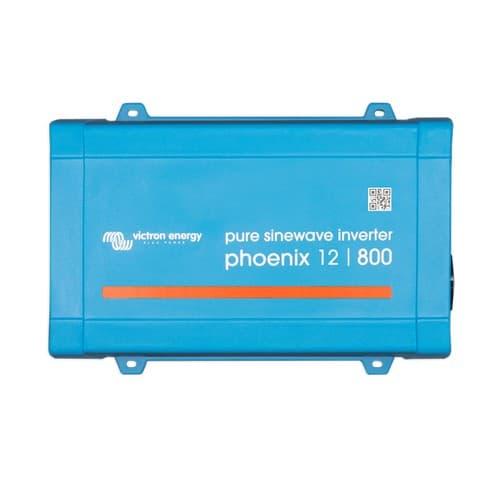

Victron Energy Phoenix Inverter 12/800 230V VE.Direct IEC | PIN121801100

Including VE.Direct communication port

The VE.Direct port can be connected to a computer (VE.Direct to USB interface cable needed). Also is is compatible with Apple and Android smartphones, tablets, MacBook’s and other devices (VE.Direct Bluetooth Smart dongle needed)

A Configurable Inverter

• Low battery voltage alarm trip and reset levels
• Low battery voltage cut-off and restart levels
• Dynamic cut-off: load dependent cut-off level
• Output voltage 210 – 245V
• Frequency 50 Hz or 60 Hz
• ECO mode on/off and ECO mode sense level

Monitoring:

• In- and output voltage, % load and alarms

Reliable:

The full bridge plus toroidal transformer topology has proven its reliability over many years. The inverters are short circuit proof and protected against overheating, whether due to overload or high ambient temperature.

A Very High start-up power

Needed to start loads such as power converters for LED lamps, halogen lamps or electric tools.

ECO mode Functionality

When in ECO mode, the inverter will switch to standby when the load decreases below a preset value (min load: 15W). Once in standby the inverter will switch on for a short period (adjustable, default: every 2,5 seconds). If the load exceeds a preset level, the inverter will remain on.

Remote on/off

A remote on/off switch can be connected to a two pole connector, or between battery plus and the left hand contact of the two pole connector.

No special tools needed for installation.

Product Attachments:

Product Datasheet: Download Now
