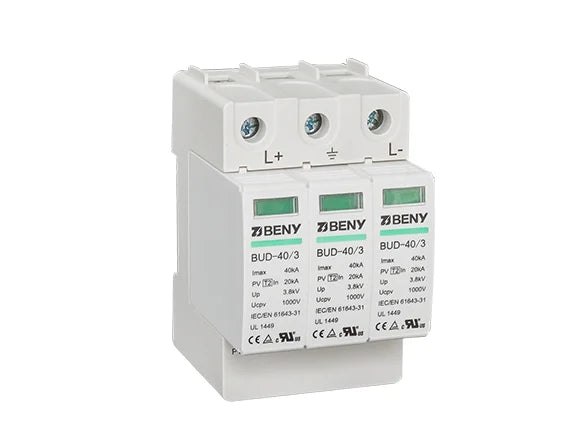

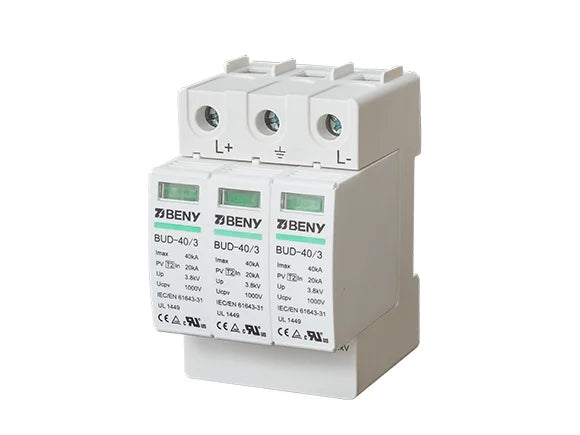

BENY DC SPD TYPE2 1000V | UL Approved
BENY DC SPD TYPE2 1000V | UL Approved
Prix habituel
$59.00 CAD
Prix habituel
Prix promotionnel
$59.00 CAD
Prix unitaire
par
Impossible de charger la disponibilité du service de retrait
DC SPD 1000V Surge Arrester | Lightning Protection UL Approved
Description:
Our UL-approved DC SPD surge protective device. Plug-in protection modules for easy installation and maintenance. High energy variation, the response time is less than 25 nanoseconds. Widely used in PV DC combiner boxes for controllers and PV DC cabinets.
TH35-7.5/DIN rail mounting
It fits in enclosures BB1F-63, BX-08 and other BENY enclosures.
Additional Information:
- Operating State/fault operation : Green/Red
- Rated voltage : 1000VDC
- Poles: 3
- Nominal discharge current: 20KA
- Maximum discharge current: 40KA
- Comply with UL1449, IEC/EN 61643-31, ROHS, CE, TUV
- Wire size hard cable: 4-25mm2
- Wire size flexible cable: 4-16mm2
- Terminal screws: M5
