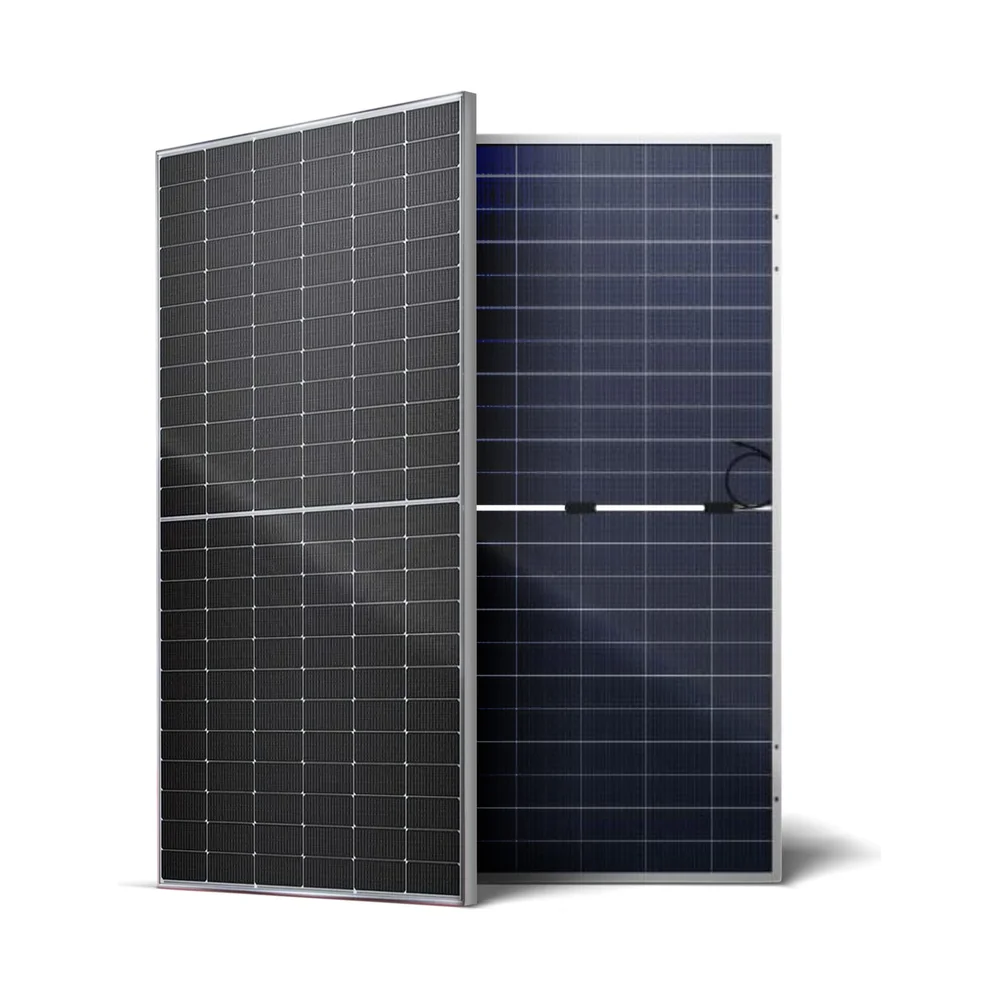

Maple Leaf 585 W TOPCon — Bifacial Dual-Glass Solar Panel, CSA Certified
Part number: SPLSML585W
$280.00CAD, plus taxes
In stock
Power585 W
1
- Expert advice within 48 business hours
- Secure payment · Visa, Mastercard, Apple Pay, Google Pay
- Turnkey installation available on quote

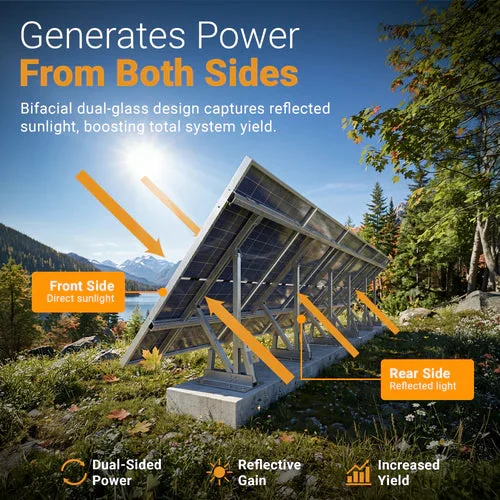

585 W solar panel with N-type TOPCon cells and dual glass, CSA certified for installation in Canada. The rear side captures reflected light to raise total output, and the glass-glass build protects against moisture and harsh weather. Low degradation (1% the first year, then 0.40% per year), 5400 Pa front load for snow and rated for 1500 V systems. For rooftops, ground mounts, farms or businesses.
| Rated power (STC) | 585 W (0 to +5 W tolerance) |
|---|---|
| Cells | N-type TOPCon monocrystalline, 144 half cells (6 × 24) |
| Type | Bifacial dual glass |
| Module efficiency | 22.65% |
| Vmp / Imp | 42.89 V / 13.64 A |
| Voc / Isc | 51.63 V / 14.39 A |
| Temperature coefficient (Pmax) | −0.30%/°C |
| Max. system voltage | 1500 VDC |
| Max. series fuse | 30 A |
| Mechanical load (front / rear) | 5400 Pa / 2400 Pa |
| Glass and frame | 2.0 mm AR-coated tempered front glass, 2.0 mm rear; anodized aluminum frame |
| Junction box and connector | IP68, 3 diodes; MC4 compatible |

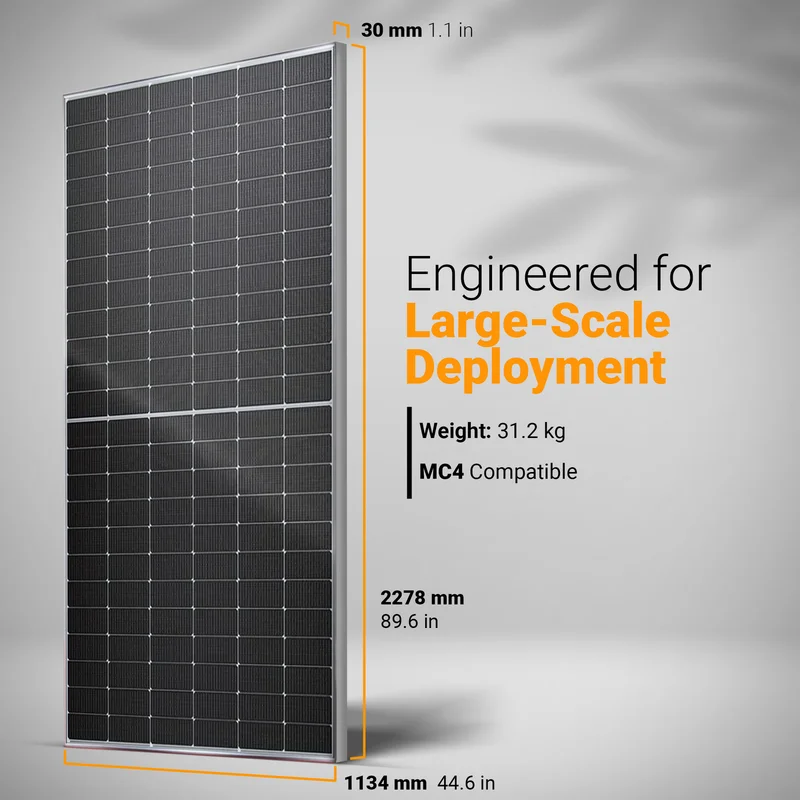

| Dimensions | 2278 × 1134 × 30 mm |
| Weight | 31.2 kg |
| Operating temperature | −40 to 85 °C |
| Manufacturer warranty | Product 15 years; linear power 30 years |
| Certification | CSA; IEC 61215, IEC 61730 |
- Brand
- Maple Leaf
- Category
- Solar panels
- Power
- 585 W
- Part number
- SPLSML585W
